Laboratory Mixers
The latest development in high shear lab mixing – the new Silverson L5M-A – is ideal for all laboratory work, research and development, QA analysis and small scale production in all industries.
The L5M-A Laboratory Mixer is suitable for the widest range of applications – mixing, emulsifying, homogenizing, disintegrating and dissolving – with an efficiency and flexibility unmatched by other machines. With a capacity from 1ml up to 12 liters and the ability to mix in-line with flow rates up to 20 liters/minute, they offer excellent reproducibility when scaling up to full-scale production and provide an accurate and easy means of forecasting the performance of larger Silverson machines under full-scale working conditions.

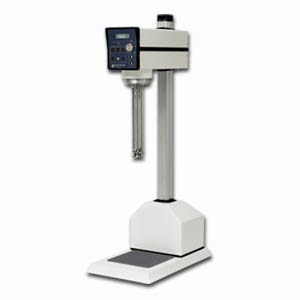

The multifunctional L5M-A lab mixer (shown right) features touch screen control with digital tachometer, programmable integral timer and amperage display. This level of instrumentation is invaluable for applications where process validation and reproducibility are required.
Model L5M-A
Capacity
1ml up to 12 liters.
1ml up to 12 liters.
Motor Unit
Robust two-piece designed for cool, quiet and continuous operation.
Robust two-piece designed for cool, quiet and continuous operation.
Motor
1hp (750W) 220 volt, single phase (110 volt optional), 50/60 Hz. Nominal maximum speed 8000 rpm (6000 rpm under full load).
1hp (750W) 220 volt, single phase (110 volt optional), 50/60 Hz. Nominal maximum speed 8000 rpm (6000 rpm under full load).
Speed Control
Infinitely variable electronic speed control with integral on/off switch.
Infinitely variable electronic speed control with integral on/off switch.
Electric Rise & Fall Bench Stand
The mixing unit may be effortlessly raised and lowered using the push-button control on the motor unit.
The mixing unit may be effortlessly raised and lowered using the push-button control on the motor unit.
Construction
All wetted parts are in grade 316 stainless steel with the exception of the bush, which may be bronze alloy or PTFE.
All wetted parts are in grade 316 stainless steel with the exception of the bush, which may be bronze alloy or PTFE.
L5 Series mixers are finished in a tough, easy-to-clean, non-chip white nylon coating. The flat base is covered by a removable non-slip mat, which is resistant to most solvents.
Assemblies
Over 40 interchangeable mixing assemblies are available including In-Line, Ultramix, Duplex and Tubular assemblies.
Over 40 interchangeable mixing assemblies are available including In-Line, Ultramix, Duplex and Tubular assemblies.
